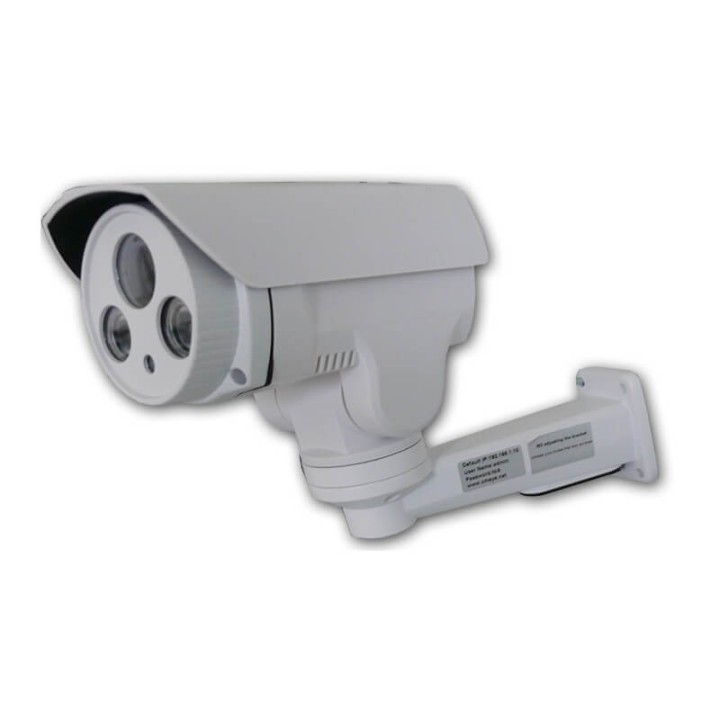

Telecamera - Mega21 Poe Ptz 6-22 mm

Telecamera IP 2.0Mpx con Ptz - Nuovissima telecamera IP a 2.0 Mpx.
Versione Ptz della Mega21 poe
Controllo Ptz da consolle o da Dvr
Lente a bordo 6-22mm

ModelNo.

Mega21 poe Ptz

CameraType

IP Camera

System

Embedded RTOS design

Camera

Pixels Effettivi

2.0Mega Pixels

Main stream:1920*1080

Substream:704*576

Frames Rates

PAL:25fps

NTSC:30fps

Sensore Immagine

1/2.8"SONY Exmor IMX222 CMOSSensor

2.48megapixel resolution (2000H*1241V)

DSP

Dualcore 32-bitDSP

(Hi3516)

Min. Illumination

Color 0.01Lux/F1.2

B/W 0.001Lux/F1.2

Adjust Parameters

DWDR, BLC, DNR,AE,AGC, D&N,Mirror, Flip,etc.

Video

Compressione

Stream

support dualstream,AVI format

Bit Rate

support0.1M~8Mpbs bitrate adjustable

Frame Rates

support1~30fpsadjust

Audio

Ingressi euscita

1ch input(micphone),1ch output(Speaker&micphone)Optional

Compressione

G.711compression,support two-wayaudio intercom,supportaudio andvideosynchronized outPuo'

PTZ

Pan/Tilt Range

Pan:0“~260“;Tilt:-5“~60“

Preset Point

256

Controllo manuale

Pan:0.5“~12“/s;Tilt:0.51“~12“/s

PresetTour

8lines

Pattern Scan

4 lines

Alarm

Tipi

Motion Detection, Video Blind, Video Loss

Network

WEB Browser

Support WEB remote config (IE, Safari,Google Chrome, Firefox

Smart Phone

mobile remoteMonitoring (iPhone,Android,Windows Mobile, BlackBerry, Symbian)

CMS Software

Uniform CMS Software(multiple devices management system)

Cloud P2P

www.p2pipc.net,MYEYE platformand other program,OfferSDK

Network

1 * RJ45,10/100M, Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP

ONVIF

Support (ONVIF2.0)

POE

Support (optional)

WIFI

N/A

Filtro IR cut

Set of double lightswitch IR-CUT filter

Lenti a bordo

Motorize ZoomAuto Focus Lens 6-22mm(2MP)

Illuminatori infrarossi

2 pcsArray IR Leds F12

Infrarossi

850 nm

Distanza illuminazione

More than 40M

Connettore I/O

1*DC Connector,1*RJ45(10/100M Network),1*BNCconnector (CVBS,Option)

Voltaggio operativo

DC12V/PoE (802.3af/820.3at)

Power

IROn:1000mAmax., IROff:Less than400mA

Working Enviroment

-10“C~+60“C,10%~90%

Dimensioni

200*150*85mm compresa staffa

Peso

1.4kg
