Model | MEGA 22 POE |
Solution | IMX222 + DM368 |
System Structure | Embedded LINUX RTOS ,dual core 32 bits DSP (TI Davinci DM368), Poe hardware compression, watchdog,128M FLASH,128M DDR2; |
Image Sensor | 1/3" SONY 2.4 Megapixel High-resolution CMOS Sensor -TI Davinci DM368 |
Resolution | 1920*1080 |
Minimum Illumination | 1Lux-sec |
S/N Ratio | >50dB |
Focus Mode | Fix Focus |
Day/Night | IR cut filter with auto switch, IR sensor. |
Network | 1 RJ45 Ethernet interface, 10/100M adaptation |
Led Controller | 1 IR lamp control interface , algorithm control IR lamp open and close |
Photoresistance | Support linkage between photoresistance inPuo' sign, image, IR-Cut and IR lamp. |
| |
Lens | 3.6mm Fix Lens |
Delay | Within The LAN 0.3S |
Frame Rate | 2 Megapixel@25FPS |
Video Compression | H.264 /JPEG |
Protocol | Protocols: RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/TCP/SMTP |
Onvif | Support Onvif 2.0 |
User Permission | Multi-user Classification Management |

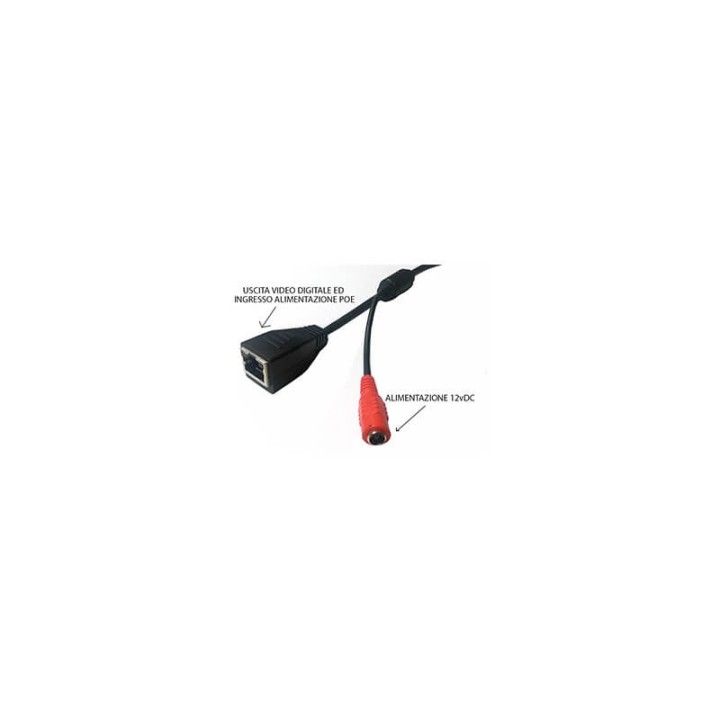

Power | DC 12V/1A - Poe 48V |
Recording Mode | NVR Local/Recording |
Consumption | 3.0W |
Temperature | -10° 55° |
Humidity | 0%-90%RH,Without Condensation |
Weight | 850g |
Main Features | / | * Superior low-light performance both in VGA mode and HD mode,Support ABLC; |
* Support WEB Configuration,IE Surveillance; * Support Dual Stream; * Support OSD,Chroma,Brightness,Saturation,Electric Zoom Configuration; * Support real-time transmission,Center warning and picture pop-up linkage supported ( after motion detection and IO alarm); * Support DDNS,UPNP remote control;Support Onvif 2.0;Support IR-Cut Switch,Sensible infrared; |
