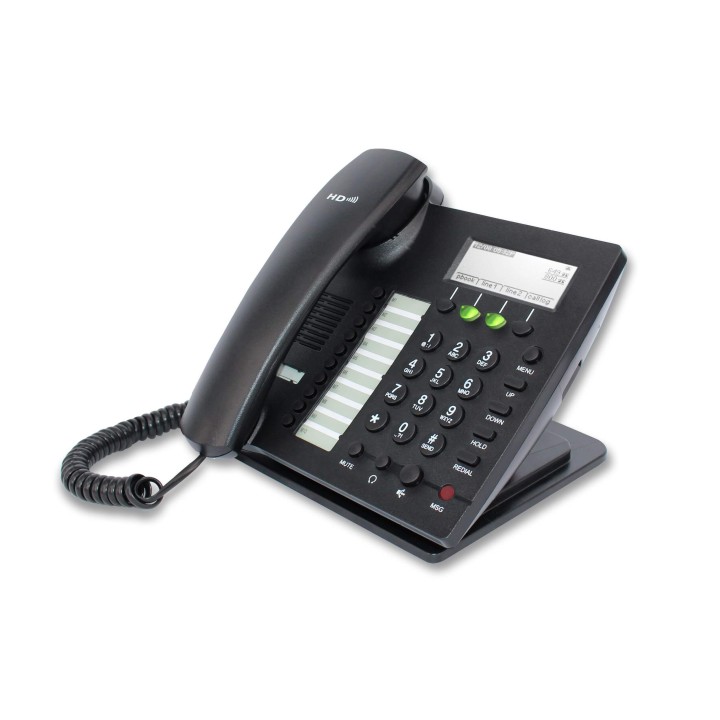

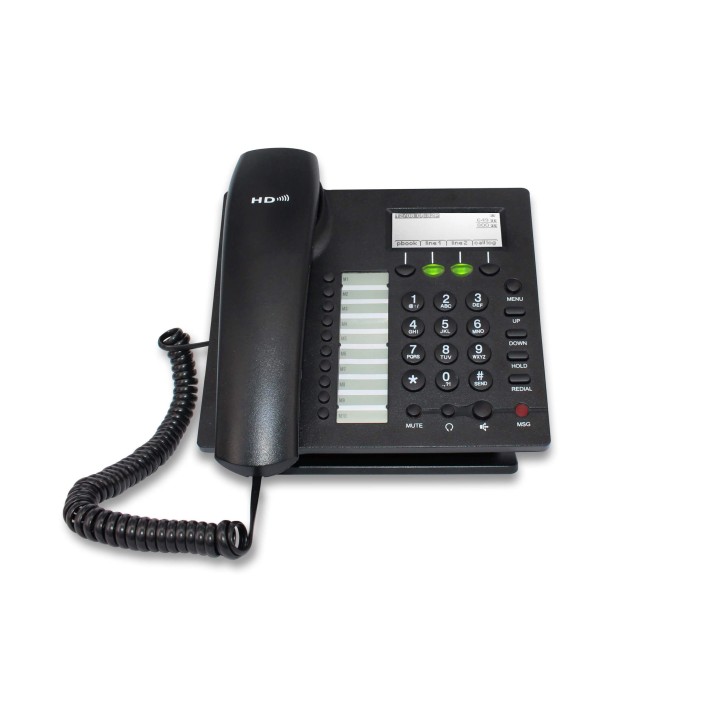

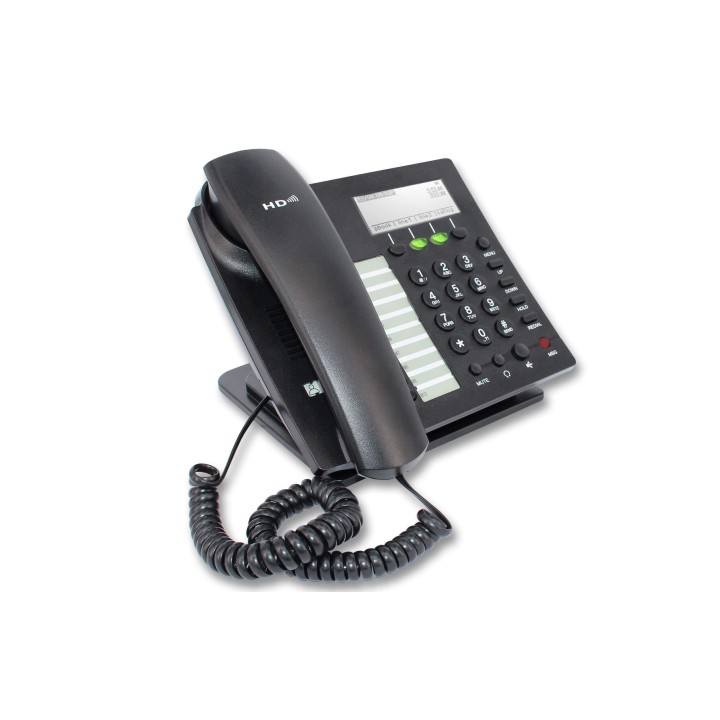

FLYING VOICE IP622CWP Business VOIP IP Phone , WIFI , POE
IP622CWP è una telefono VOIP conveniente, gestisce ben 2 account SIP, ha uno schermo LCD, 10 softkey programmabili, supporto PoE opzionale, auricolare con attacco RJ9, ha 10 pulsanti di selezione rapida (senza BLF) forniscono un'esperienza di comunicazione comoda per la chiamata occupata in un abiente business. IP622CWP ha eccellente qualità HD vocale, funzionalità avanzate del sistema telefonico di bordo per fornire agli utenti la personalizzazione delle informazioni , supporto della distribuzione automatica, meccanismo di protezione avanzato ed è compatibile con un'ampia gamma di piattaforme SIP / IMS di settore.
▪ Support SIP V2.0 (RFC 3261,3262,3263,3264)
▪ 2*10/100M RJ45 Port
▪ 320*240 TFT color screen
▪ 2*Line-Keys & 2*SIPaccount
▪ 4 customizable buttons for LCD menu selection
▪ 10multi-function keys, (Without BLF)
▪ Support for IEEE 802.3af Power over Ethernet (PoE) - Optional
▪ Support the headset and wall
▪ Auto Configuration- TFTP/HTTP/HTTPs/TR-069/SNMP
The IP622CWP supports 5 codec: G.711 (A-Law, U-Law), G.729A/AB, G.723 with 5.3 kbps and 6.3 kbps, iLBC and G.722 (HD).
The IP622CWP supports VAD (Voice Active Detection), CNG (Comfort Noise Generation), AEC, ANC (Automatic Noisy Cancel), AGC (Automatic Gain Control) and adaptive Jitter buffer.
2 lines, Call Waiting, Auto Answer, Music on hold, Caller ID and call waiting ID, 3-way Conference, Call Hold, Call Forwarding, Call Mute, Delayed Hotline , Redial, Call Transfer: blind transfer and attended transfer, Dial Plan, Phonebook, Black List, MWI, SMS, DND,Full-duplex Speakerphone Call log: redial list, answered calls and missed calls
Volume Adjustment: Handset/Headset, Speaker and Ringer
DTMF Relay: In-band, Out-band (RFC2833) and SIP INFO
Menu Configuration, SNTP Time Synchronization, Daylight Saving Time, Alarm Clock, Password Reset, Web access management, Local and Remote Syslog (RFC3164), Factory Default, Firmware Upgradeable, Web Management Interface, Multi User Level, SNMPv2, TR069, Auto Provisioning: TFTP (including option 66), HTTP and HTTPS
MAC Address Cloning, VPN: PPTP and T2TP, DMZ, Direct IP to IP calling, IP conflict detection, Built-in
NAT Router, DHCP Server and Client,
Layer 2 QoS: 802.1Q/VLAN ID and 802.1p PRI
Layer 3 QoS: SIP QoS, RTP QoS and Data QoS
SIP proxy redundancy: dynamic via DNS SRV, A records
NAT Traversal: Static NAT Route and Traversal by STUN
Support PoE complies with IEEE802. with3af (optional)
IP622CWP Specification
Hardware Features |
Interface | 2 RJ-45 port (10/100 Ethernet Ports) 1 RJ9 for headset Support PoE comply with IEEE802.3af(optional) Headset jack and Wall-mount 802.11n 1T1R |
Display | 128×64 Graphic LCD with white back light |
Phone Keys | 2 Line keys and 4 Soft keys, MENU, UP,DOWN,MUTE/DEL, REDIAL HOLD, MSG, Headset, Handsfree 12 Dialing Buttons (0~9, *, #) 10 Multi-functional key without BLF |
Power Supply | AC/DC Adapter * AC Input: 100~240V, 50~60Hz * DC Output: 5V, 1A |
Environmental | Operation Temperature: 0~50 Degree C Storage Temperature: -25~ 85 Degree C Relative Humidity:10%~90% No Condensing |
Dimension | (L) 191 x (W) 205 x (H) 75 mm |
Unit Weight | 720g (No packet) |
Software Features |
Audio Codec Features | G.711 (A-Law, μ-Law) G.722 (HD) G.723.1 G.729AB G.726 iLBC Adaptive Jitter Buffer Management Voice Activity Detection Comfort Noise Generation Echo Cancellation |
Protocols | SIP V2 (RFC 3261,3262,3263,3264) SDP (RFC2327) RTP/RTCP (RFC1889 and RFC1890) NAPTR for SIP URI Lookup (RFC2915) STUN (RFC 3489) ARP/RARP (RFC 826/903) SNTP (RFC 2030) TFTP/HTTP/HTTPS for Auto Provisioning DNS/DNS SRV (RFC1706 and RFC 2782) IEEE802.1Q VLAN/802.1p and IP TOS SNMPV2 TR069(TR104/TR098/TR111) |
Management | Firmware Upgradeable Web Management Interface Password Management Local and Remote Syslog (RFC3164) Auto Provisioning: TFTP, HTTP and HTTPS SNTP Time Synchronization Multi User Level Auto Provision Support TR069 management mode |
Applications | SMS Function MAC Address Cloning SIP proxy redundancy DNS SRV Direct IP to IP calling Traversal by STUN VPN: pptp,l2tp,OpenVPN QoS with Layer 2 and Layer 3 DHCP Server and Client IP conflict detection Support Mutil-Vlan |
Call Features | 2 lines Auto Answer 3-way Conference Music on hold Call Hold Call Forwarding Call Mute Call Transfer Call Waiting Call Pickup MWI CID and CWCID DTMF Relay: In-band, Out-band(RFC2833) and SIP Info Full-duplex Speakerphone Hotline Redial Dial Plan Volume adjustment- handset/handfree/speaker/ringing |
Phone Features | Customized Ring Tone SMS (100 records) Call History (100 records ) - Most Recently Missed Calls - Most Recently Received Calls - Most Recently Dialed Numbers Phone book ( 100 records) Speed Dial (10 records ) |
