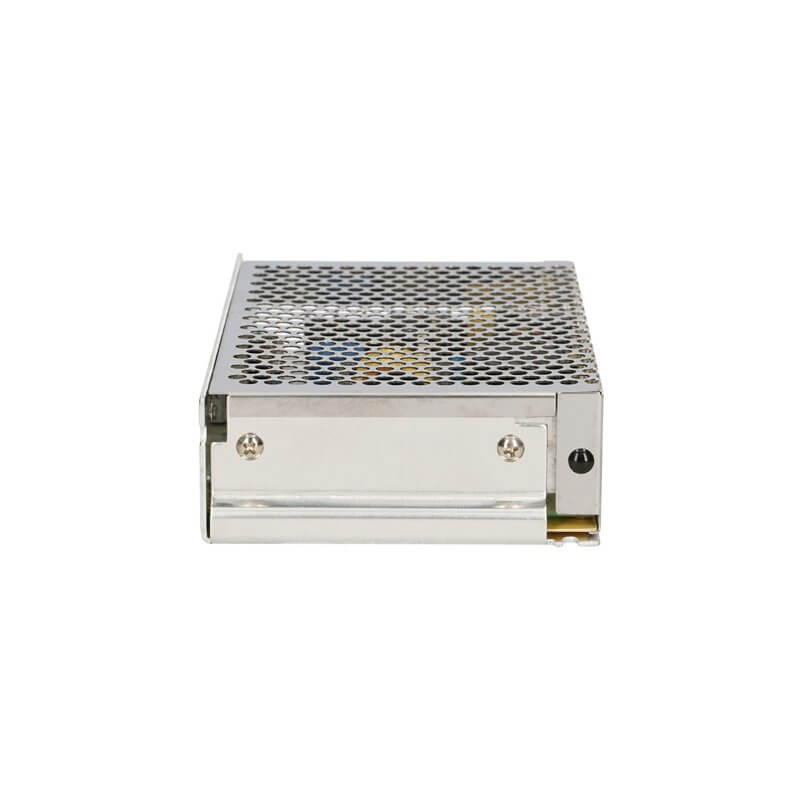

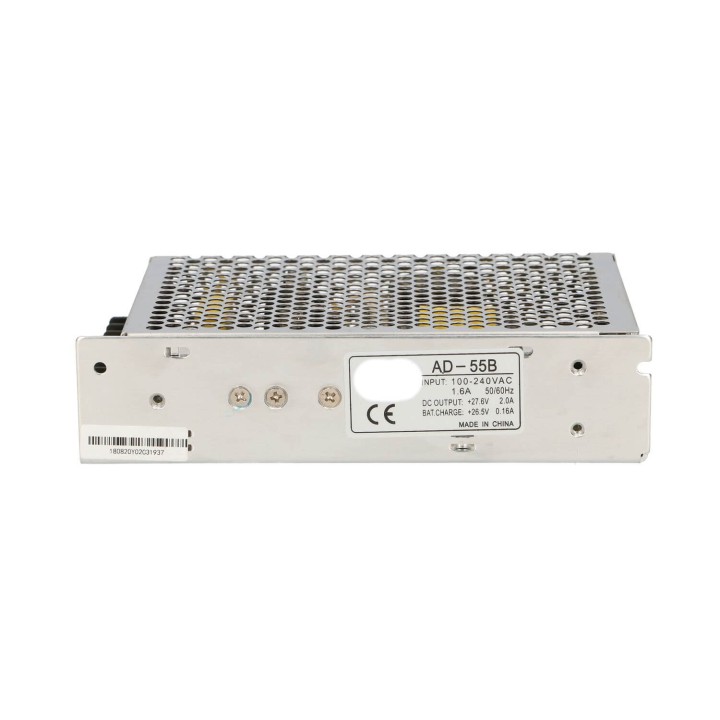

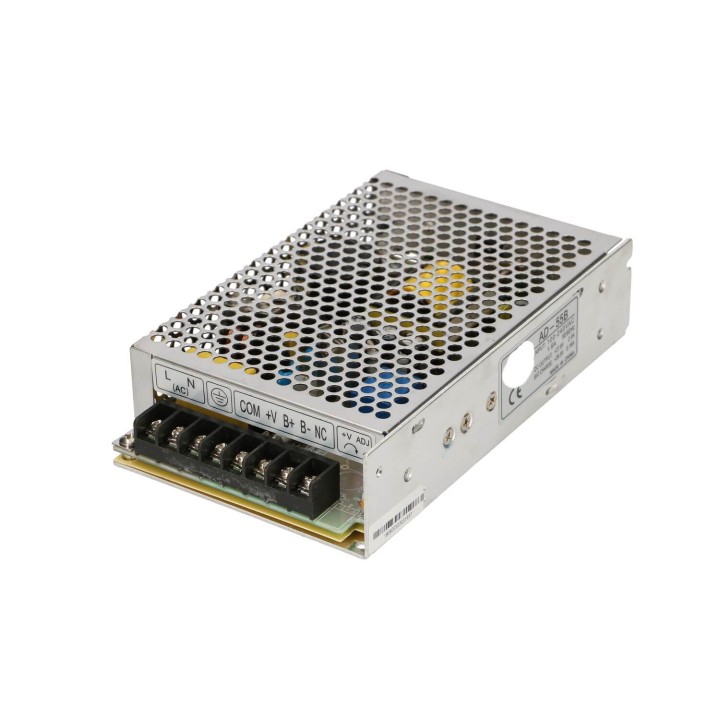

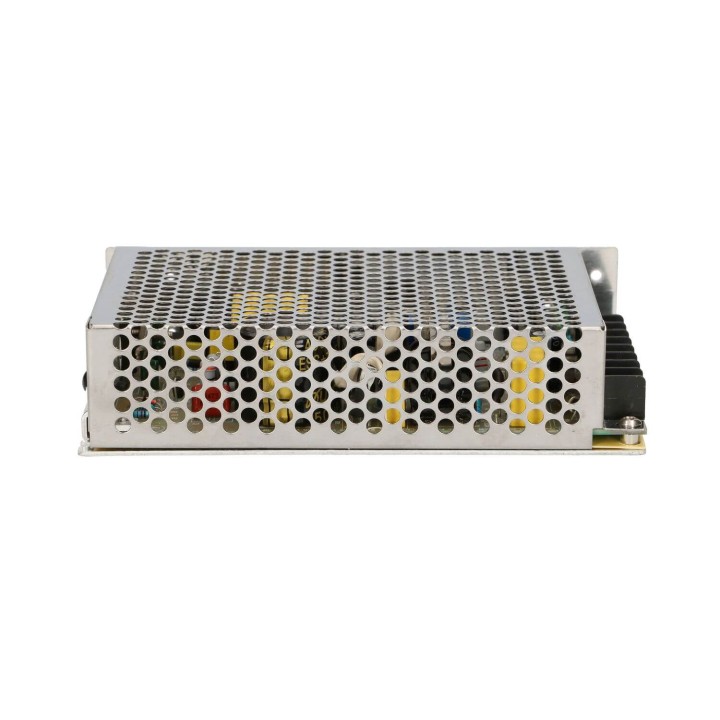

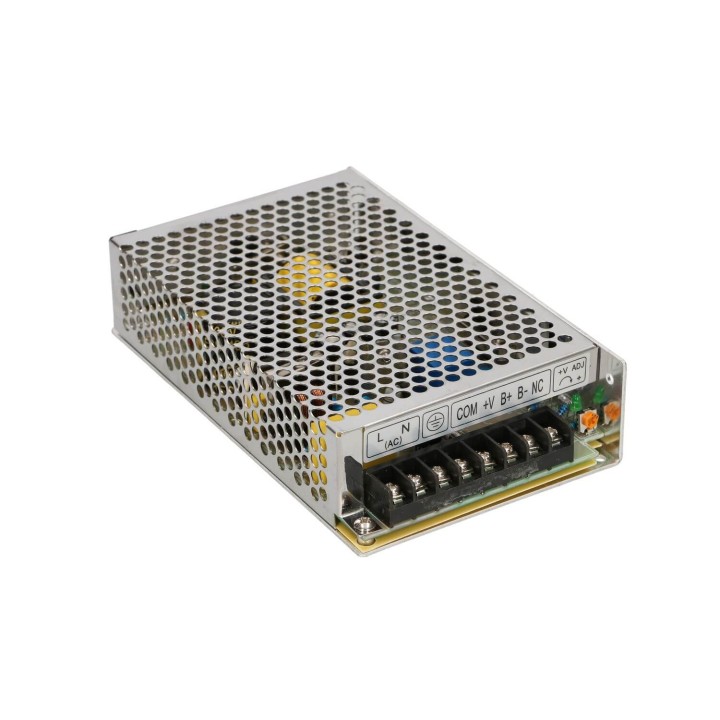

EXTRALINK AD-55B POWER SUPPLY WITH BATTERY CHARGER 24V/27.6W 55W BUFFER EX-14114
Codice EX-14114EAN 5903148914114
1. Ingresso CA universale / gamma completa 2. Protezioni: cortocircuito / sovraccarico / sovratensione 3. Protezioni basse della batteria 4. Raffreddamento mediante convezione dell'aria libera 5. Test di burn-in a 100% a pieno carico 6. Corretta la frequenza di commutazione a 45 KHz
EXTRALINK AD-55B POWER SUPPLY WITH BATTERY CHARGER 24V/27.6W 55W BUFFER EX-14114 è un alimentatore a 24v 55 W Uscita singola con caricabatteria (funzione UPS) distribuito da Wisp Store.
Caratteristiche: 1. Ingresso CA universale / gamma completa 2. Protezioni: cortocircuito / sovraccarico / sovratensione 3. Protezioni basse della batteria 4. Raffreddamento mediante convezione dell'aria libera 5. Test di burn-in a 100% a pieno carico 6. Corretta la frequenza di commutazione a 45 KHz
SPECIFICATIONS:
MODEL
AD-55A
AD-55B
OUTPUT
CH1
CH2
CH1
CH2
Output number
13.8V
13.4V
27.6V(24V)
26.5V(24V)
DC voltage
3.5A
0.23A
1.8A
0.16A
Rated Current
0~4A
--------
0~2A
--------
Current Range
51.38W
53.92W
Rated Power
100mVp-p
--------
100mVp-p
--------
Ripple & Noise
CH1:12~14.5V
CH1:24~29V
Voltage Adj. Range
±1.0%
--------
±1.0%
--------
Voltage Tolerance
±0.5%
--------
±0.5%
--------
Line Regulation
±0.5%
--------
±0.5%
--------
Load Regulation
800ms,50ms/230VAC 1600ms,50ms/115VAC at full load
Setup, Rise Time
80ms/230VAC 16ms/115VAC at full load
INPUT
Voltage Range
88~264VAC 47~63Hz; 124~370VDC
AC Current
1.6A/115VAC 1A/230VAC
Efficiency
71%
74%
Inrush Current
Cold start 20A/115VAC 40A/230VAC
Leakage Current
<1mA /240VAC
PROTECTION
Over Load
105~150% rated output power
Protection type: AC Charging Mode: Hiccup mode, recovers automatically after fault condition is removed UPS Mode: Protected by internal fuse
Over Voltage
CH1:15.87~18.63V
CH1:31.74~37.26V
Protection type: Hiccup mode,recovers automatically after fault condition is removed
Battery Low
9.5~11V
20~22V
ENVIRONMENT
Working Temp.
-10~+60℃ (Refer to “Derating Curve”)
Working Humidity
20~90%RH non-condensing
Storage Temp., Humidity
-20~+85℃,10~95%RH
Temp. Coefficient
±0.03%/ ℃(0~50℃ )on CH1 output
Vibration
10~500Hz,2G10min./1cycle,60min.each along X, Y,Z axes
SAFETY &EMC
Safety Standards
UL60950-1, TUV EN60950-1 approved
Withstand Voltage
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation Resistance
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC /25℃/70%RH
EMC Emission
Compliance to EN55022(CISPR22) Class B, EN61000-3-2,-3
EMC Immunity
Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024,light industry level, criteria A
OTHERS
Dimension
159*97*38mm(L*W*H)
Weight
0.5Kg
Packing
24pcs/12.60Kg/0.75CUFT
All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
Tolerance: includes set up tolerance, line regulation and load regulation.
The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
