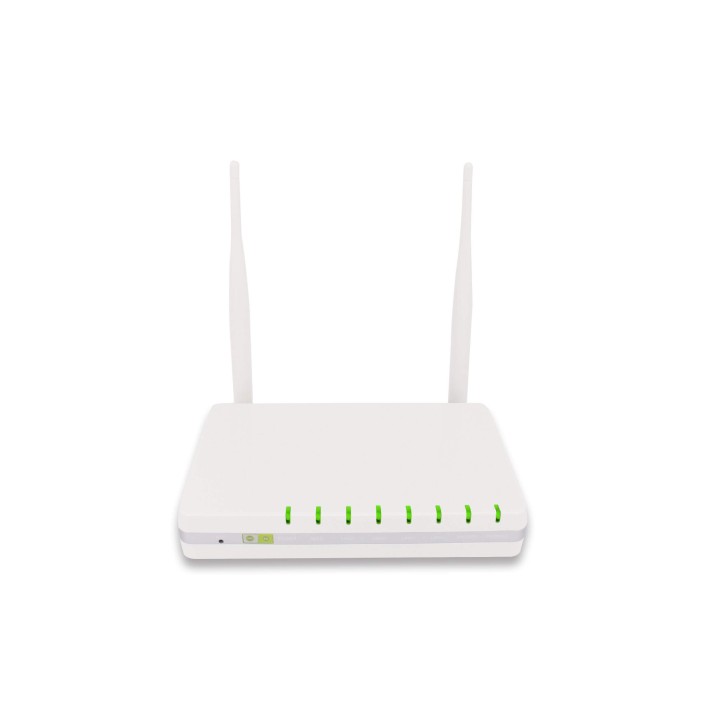

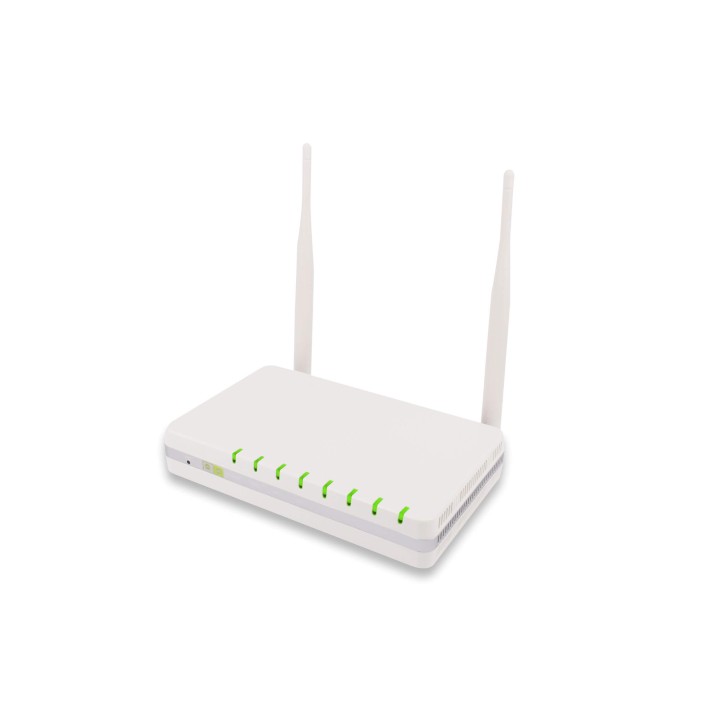

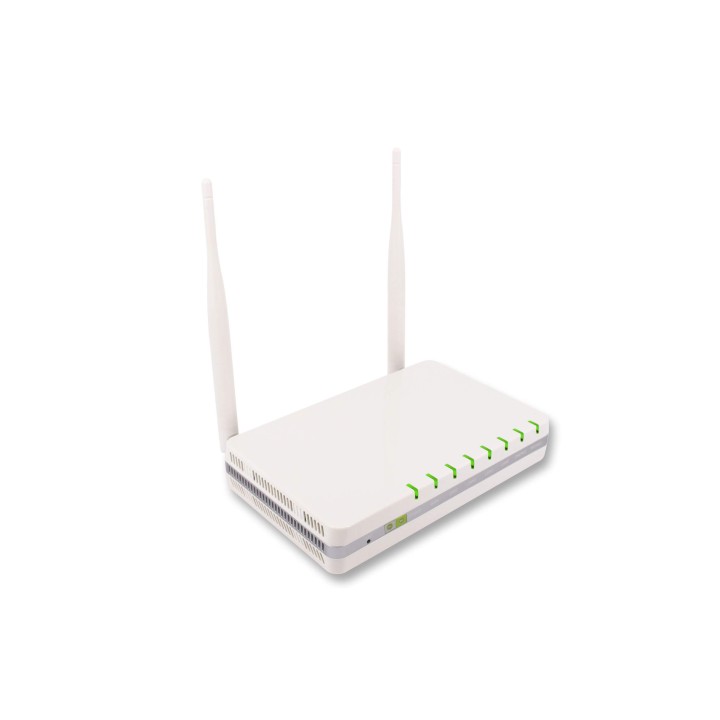

FLYING VOICE FWR9202 - VoIP Wireless Router , 1 WAN , 4 LAN , 2 FXS, 1USB , WIFI 2,4/ 5 GHZ DUALBAND AC
Il Flyingvoice FWR9202 è un potente VoIP Wireless Router AC, FWR9202 include funzioni estese supporta Nas via USB e 2 porte FXS per il Voip. Gli utenti possono anche configurare FWR9202 come server FTP, per condividere file, immagini e altre risorse della LAN. Nel frattempo, 2 porte FXS possono essere ben configurate per le piccole e micro imprese, 1 FXS per telefono, 1FXS per fax, non c'è bisogno di aggiungere ulteriori attrezzature. router wireless FWR9202 VoIP è ideale per le piccole e medie imprese (SMB) per costruire ufficio senza fili utilizzando la tecnologia AC.
FWR9202 supporta IEEE802.11ac gigabit wireless LAN standard, la più alta velocità è fino a 867Mbps e supporta sia 2,4 GHz e 5 GHz. Per l'utente finale il VoIP su banda a 5Ghz può fare in modo di avere meno interferenze e la qualità della trasmissione,possono godere di una maggiore larghezza di banda, e una maggiore velocità di trasmissione dati.
• 5 porte RJ45 - 100Mbps
• 2 porte RJ45 - FXS
• 1 porta USB
• WiFi Dual-Band: 5 GHz (867Mbps), 2.4 GHz (300Mbps)
• Hardware NAT (HNAT) engine con velocità 1000Mbps NAT/NAPT
• Servizio QoS in modalità cablata e/o wireless
• FAX su IP, Real time con T.38 e T.30 FAX, con G.711
• PESQ is above 4.3 in G.711, PESQ is above 3.7 in G.729
• Auto-Provisioning TFTP/HTTP/HTTPS, TR069, SNMP
Specifiche Hardware |

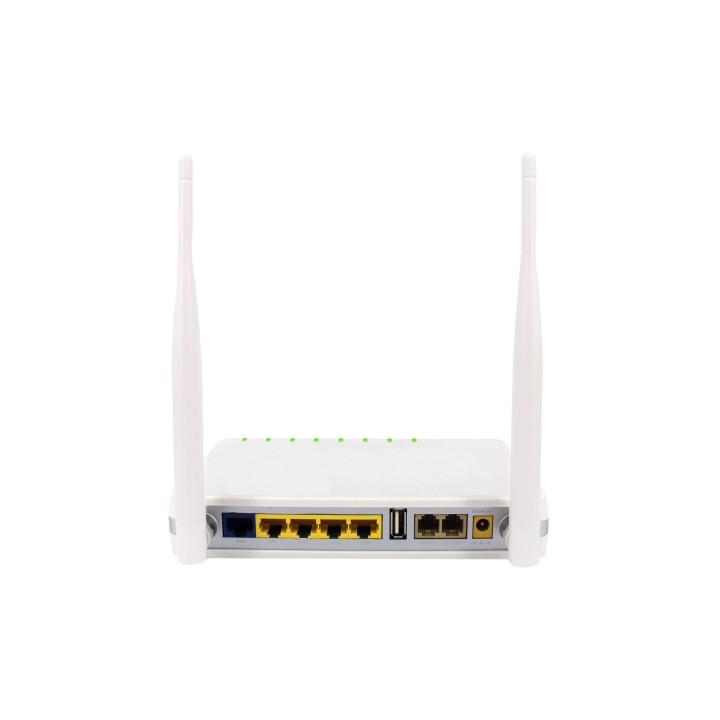

Interface | 1 RJ-45 for WAN port (Ethernet 100 Base-T) 4 RJ-45 for LAN port (Ethernet 100 Base-T) 2 RJ-11 for FXS port IEEE802.11 b/g/n IEEE802.11 ac 1 USB 2.0 Host Ports |
Power Supply | AC Input : 100-240v, 50-60Hz; DC Output: 12V, 2A |
Environmental | Operation Temperature: -5~45 Degree C Storage Temperature: -25~85 Degree C Relatively Humidity: 10%~90% No Condensing Shock: Up to 75cm Drop upon package |
Dimension | (L)178×(W)110×(H)33mm |
Unit Weight | 315g(without package) |
Funzionalità Software |
Audio Codec Features | G.711 (A-Law, u-Law) with PESQ above 4.3 G.729 with PESQ above 3.7 Adaptive Jitter Buffer Management Voice Activity Detection Comfort Noise Generation Echo Cancellation T.30 FAX with G.711 Real time FAX over IP via T.38 |
Protocols | SIP V2.0 (RFC 3261, 3262, 3263, 3264) Backward compatible with RFC2543 Session timer (RFC4028) SDP (RFC2327) RTP/RTCP (RFC823/903) NAPTR for SIP URI lookup (RFC2915) STUN (RFC2030) ARP/RARP (RFC 826/903) SNTP (RFC 2030) DHCP/PPPoE HTTP Server for Web Management TFTP/HTTP for Auto Provisioning Message Waiting Indicator (RFC3842) DHCP Option Codes for SIP (RFC3361) DNS/DNS SRV (RFC1706 and RFC 2782) IEEE802.1Q VLAN/802.1p and IP DSCP |
Management | Firmware Upgrade Web Management Interface IVR-driven Management Interface Local and Remote Syslog (RFC3164) Auto Provisioning SNTP Time Synchronization Multi User Level SNMP v2 Telnet TR069 System Log: local log and remote log |
Wireless | 4 SSID per Radio Static WEP(64/128bit) Dynamic WEP(64/128bit) AES(CCMP/TKIP) MAC certification WEP certification WPA-PAK/WPA-PSK(2.0) WPA/WPA2 AP Isolation and MBSSID AP Isolation WMM WDS WPS Station list Radius certification and billing MAC Filter(different from wired MAC Filter) |
Applications | Support NAT mode and Bridge mode Support DDNS MAC address cloning SIP proxy redundancy NAT Traversal by STUN Built-in Wired speed NAT Router DHCP Server and Client IP conflict detection Port Forwarding, DMZ, SuperDMZ 802.1Q VLAN/802.1p, DSCP, Rate Limiting VPN(PPTP,L2TP, IPSec) Passthrough SNTP IGMPv2,IGMPv3 ACL(Access Control List) Broadcast Strom Control Mac Filtering Firewall(SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS) Ipv6(Dual Stack) MLDv1, MLDv2 |
Call Features | 3-way conference Call hold Call forwarding Call Transfer Call waiting Caller ID and CWCID DTMF Relay: In-band, Out-band and SIP INFO QoS Layer 3 Call Log CID/CWCID Dial Plan DTMF Mode: Inband, outband and SIP Info |
